Double-Cone Mixers
304 Stainless Steel (Food Grade)

OMAXON DCM-304SS-C200K

Double-Cone Mixer

Easy to Use

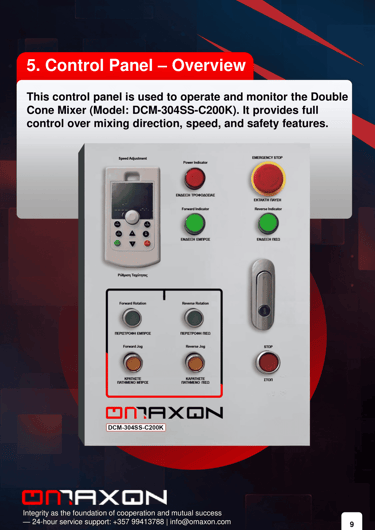

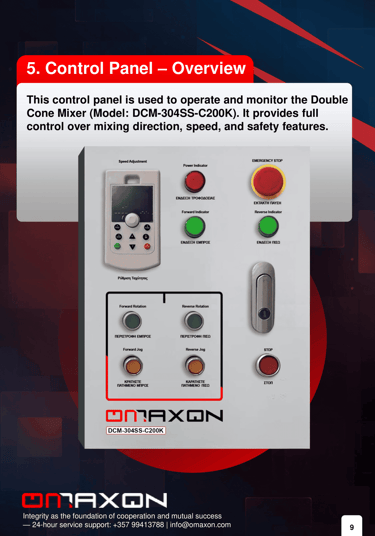

Outstanding Control Panel makes it easy to get started.

Speed Adjustment

Set and fine-tune rotation speeds for different material types

Directional Control

Forward and Reverse rotation or use the manual "Jog" function

Mixer Capacity

Up to 280 Liters / 200KG

Featuring The OMAXON DCM-304SS-C200K

280L / 200KG (Total Volume: 400L)

OMAXON — Industrial Mixing, Perfected and Ready.

Efficient Mixing and Blending - Easy to Use

Effective Mixing Capacity

Cylinder Dimensions

780mm (Diameter) x 1250mm (Length)

Food Grade Quality

304 Stainless Steel (304SS) for hygiene and durability

Fast Mixing Cycles

single mixing cycle in just 5 to 10 minutes

Full Compliance

Meets EU Directive 2006/42/EC and 2014/30/EU

Safety & International Compliance

Specifically addressing Essential Health and Safety Requirements for foodstuff, cosmetics, and pharmaceutical machinery.

OMAXON ensures the highest standards of safety and electrical reliability. This equipment is in full conformity with Union harmonization legislation:

Machinery Directive: 2006/42/EC

Electrical Safety

Compliant with Directive 2014/30/EU for equipment designed for use within certain voltage limits.

Harmonized Standards

Designed to meet EN ISO 12100:2010 (Safety of machinery), EN 60204-1:2018 (Electrical safety), and EN IEC 61000-6-2 & 6-4 (Electromagnetic compatibility).

Comprehensive Documents Included

1. Declaration of Conformity.

2. Declaration of Design for Hygiene and Cleanability.

3. Declaration of Material Conformity.

4. Quality Assurance and Testing Declaration.

Every unit is delivered with a complete documentation package to support your quality assurance protocols:

Documents Included

Frequently asked questions

1- What materials are used for the OMAXON Double-Cone Mixer?

To ensure pharmaceutical and food-grade compliance, the machine body is constructed from 304 Stainless Steel, while all internal parts that come into direct contact with the product are made from 316L Stainless Steel. This provides superior corrosion resistance and prevents any product contamination.

2- How does the Double-Cone design improve mixing quality?

The unique symmetrical cone shape creates a multi-dimensional blending path. As the machine rotates, the product is continuously divided and recombined. This "gravity-flow" method is much gentler on the material than mechanical agitators, making it ideal for fragile powders or granules that must not be broken during the process.

3- Is the machine easy to clean between different batches?

Yes. The interior of the double cone is mirror-polished to prevent powder buildup. Because there are no internal blades or complex mechanical shafts inside the mixing chamber, there are no "dead corners." This makes the cleaning and sterilization process fast and highly effective, which is critical for preventing cross-contamination.

4- How do the 8x Fuma Caster Wheels benefit a heavy mixer?

Industrial mixers are typically heavy and difficult to move once installed. OMAXON equips this model with 8x Heavy-Duty Fuma Caster Wheels (Movable Foots). These allow a single operator to move the mixer across the production floor for maintenance or storage, and then lock the wheels into a solid, vibration-free standing position for operation.

5- Can this mixer handle different capacities?

While this specific model is optimized for its rated volume, the double-cone design is effective even when the mixer is only partially filled (typically 40% to 60% of total volume), ensuring a homogenous blend regardless of the batch size within that range.
