8-Needle Ampoules Filling and Sealing Machine | OMAXON AFS8N-240APM-GMP

Suitable for filling and sealing 1-2ml glass ampoules (ISO Type B)

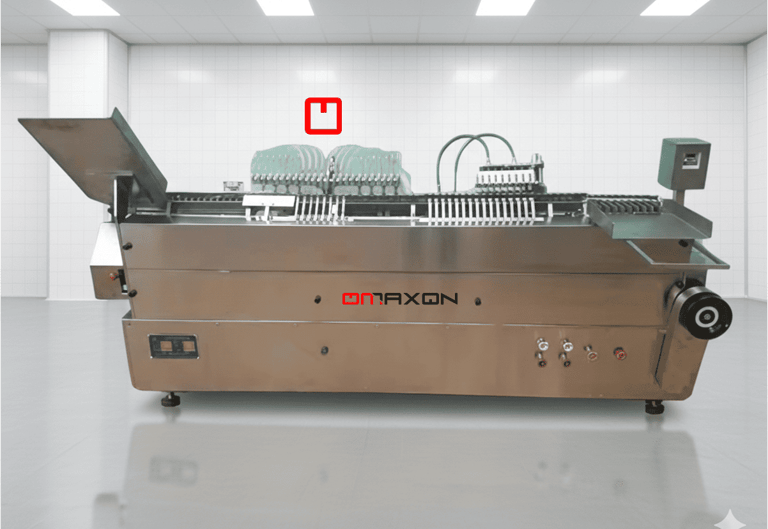

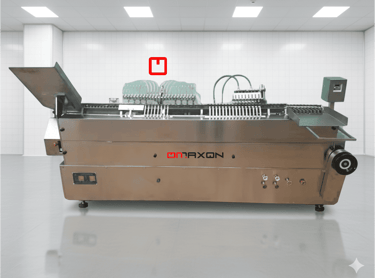

OMAXON Ampoules Sealing Machine
(Model: AFS8N-240APM-GMP)

The OMAXON AFS8N-240APM-GMP is a high-performance industrial solution engineered for the rapid filling and sealing of 1-2ml glass ampoules (ISO Type B). Utilizing an advanced 8-Needle system, and Dual-Inlet Pipes, this machine can process 8 ampoules simultaneously, significantly boosting productivity while maintaining a compact footprint. It is specifically designed for high-precision applications, such as filling skincare oils and other liquid formulations.

To ensure maximum mobility within your facility, OMAXON has equipped this unit with 8x Fuma Caster Wheels, allowing for easy repositioning at any time.

Key Features & Operational Control:

Precision Filling: Employs advanced Glass Piston Pumps for extreme accuracy and minimal waste.
Pharmaceutical Grade Materials: The machine body is constructed from 304 Stainless Steel, while all product contact parts (needles and filling components) are made from 316L Stainless Steel to meet strict hygiene standards.
Massive Throughput: Capable of reaching speeds of 14,000 – 16,000 ampoules per hour (approximately 240+ per minute).
Advanced Adjustability: Features centralized controls for ampoule feeding, needle alignment, filling dosage, and flame adjustment for perfect sealing every time.
Auto Stop-Fill Mechanism: Integrated sensors stop the filling process if no ampoule is present at the station, preventing product loss.

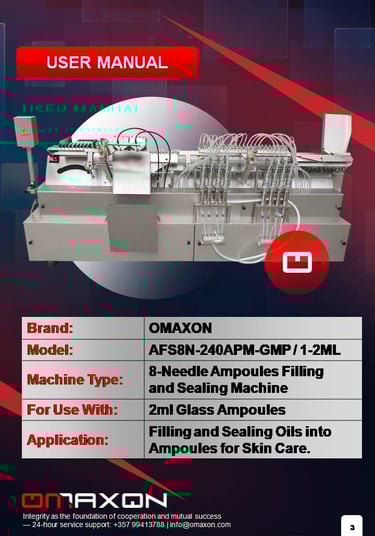

Quick Guide PDF

Order Now

OMAXON AFS8N-240APM-GMP

Ampoules Filling and Sealing Machine with 8 Needles

Easy to Use

Outstanding Controls make it easy to get started.

Output Speed

240+ Ampoules per Minute

Supported Sizes

1ml and 2ml Glass Ampoules
(ISO Type B)

Sealing Gas Options

LPG + Oxygen OR
Coal Gas + Oxygen

Featuring The OMAXON AFS8N-240APM-GMP

controls for feeding, alignment, dosage, and flame

OMAXON: Precision Ampoule Filling, Ready for Production.

Efficient Ampoules Filling and Sealing - Easy to Use

Advanced Adjustability

Massive Throughput

Up to 16,000 ampoules per hour (approx. 240+ per minute)

Pharmaceutical Grade Materials

304 and 316 Stainless Steel (304SS & 316SS)

Auto Stop-Fill Mechanism

Integrated sensors prevent product-loss

Full Compliance

Meets EU Directive 2006/42/EC and 2014/35/EU

Safety & International Compliance

Specifically addressing Essential Health and Safety Requirements for foodstuff, cosmetics, and pharmaceutical machinery.

OMAXON ensures the highest standards of safety and electrical reliability. This equipment is in full conformity with Union harmonization legislation:

Machinery Directive: 2006/42/EC

Electrical Safety

Compliant with Directive 2014/30/EU for equipment designed for use within certain voltage limits.

Harmonized Standards

Fully compliant with EN 60204-1:2018 (Electrical Safety) and EN ISO 12100:2010 (Risk Assessment). Performance and safety are supported by third-party test reports.

Comprehensive Documents Included

CE Certificate of Conformity.
EU Declaration of Conformity (DoC).
Declaration of Design for Hygiene and Cleanability.
Quality Assurance and Testing Declaration.

Every OMAXON machine is delivered with a complete technical package to ensure seamless regulatory integration:

Documents Included

Frequently asked questions

1- Why does OMAXON use a Dual-Inlet Pipe system instead of a single one?

OMAXON utilizes two high-capacity inlet pipes to feed the 8-needle system. While a single pipe can struggle to maintain the required pressure for high-speed filling, our Dual-Inlet design ensures a consistent, balanced flow of liquid to all 8 needles simultaneously. This prevents bottlenecks and ensures the machine reliably reaches its maximum production speed of 240+ ampoules per minute.

2- How difficult is it to move a 460KG industrial machine?

Most machines this size use stationary standing feet, making them extremely difficult to relocate. OMAXON has addressed this by installing 8x Heavy-Duty Fuma Caster Wheels (Movable Foots). Despite the machine’s 460kg weight, these specialized wheels allow a single operator to move the unit anywhere in the warehouse or production line with ease and precision.

3- What are the advantages of the Glass Piston Pumps used by OMAXON?

The AFS8N-240APM-GMP comes standard with precision Glass Piston Pumps. These pumps offer superior chemical resistance and high dosing accuracy, which is critical for expensive skincare oils and pharmaceutical products. Unlike plastic alternatives, glass components do not leach into the product, ensuring the highest purity for your filling process.

4- Can I choose Peristaltic Pumps instead of Glass Piston Pumps?

Yes, OMAXON can provide this machine with Peristaltic pumps upon request. However, customers should be aware that while Peristaltic pumps are easy to set up, the internal tubing is a consumable part that requires regular maintenance and frequent replacement to avoid leaks or inaccurate dosing. In contrast, our standard Glass Piston Pumps are designed for long-term durability with minimal parts replacement.

5- How does the "Auto Stop-Fill" mechanism improve production efficiency?

To prevent product waste, the machine features an Auto Stop-Fill Mechanism. If an ampoule is missing from the feeding line, the sensors will automatically halt the filling for that specific needle station. This ensures your valuable product is never wasted on the conveyor belt and keeps the machine clean during high-speed operations.
